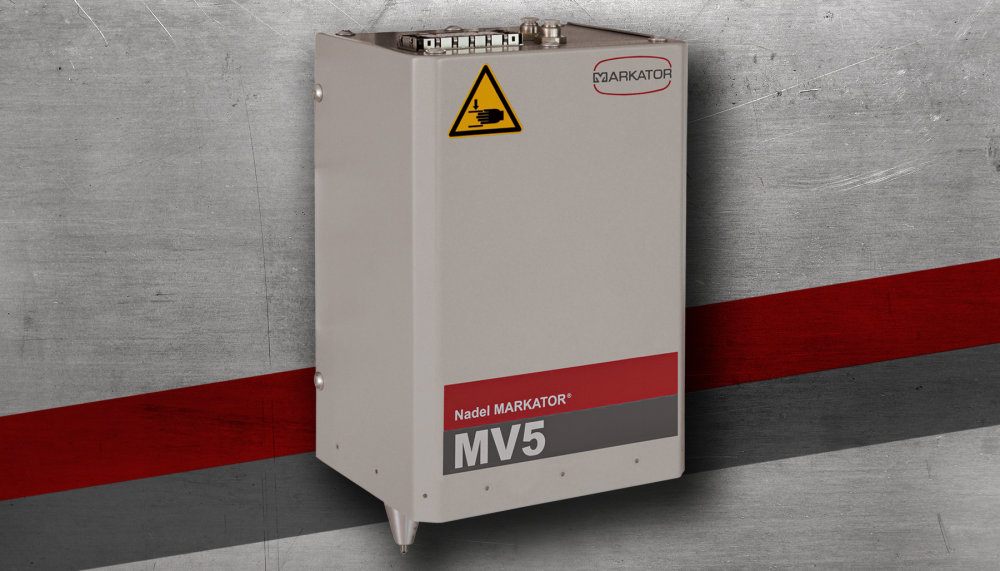

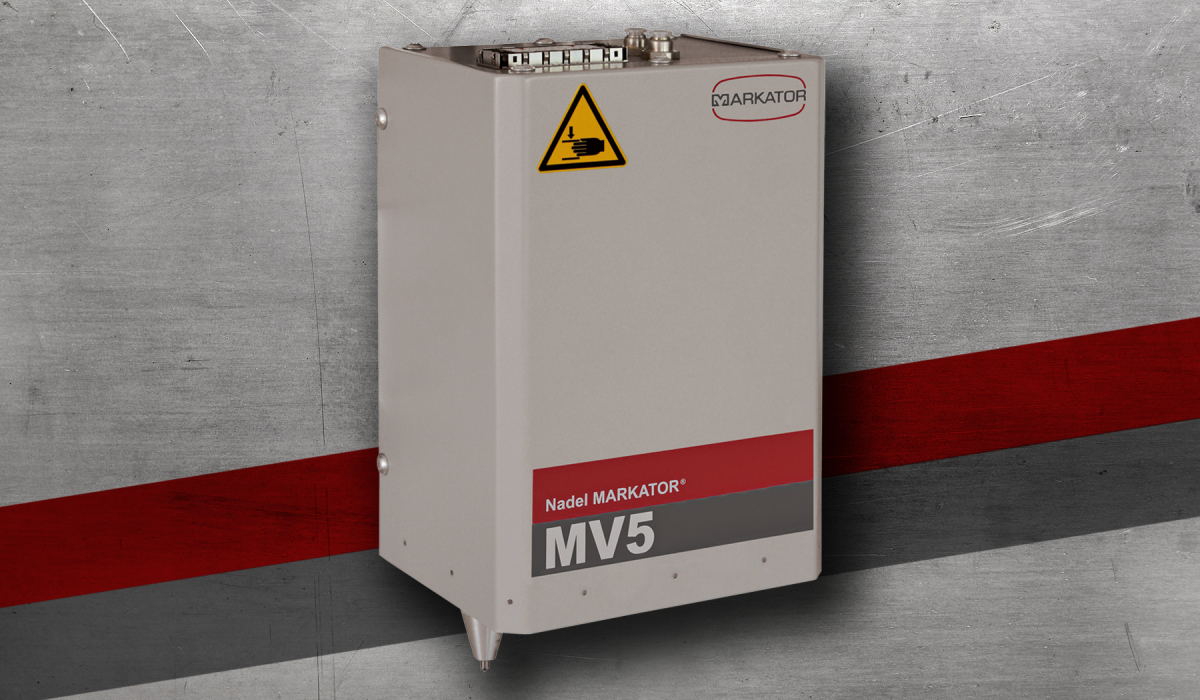

MV5 VU2

Data Matrix CodeScribe markingIntegration

The expert for automation

Compact and weight-optimized for easy integration

Videos

Sample markings

Downloads

Product details

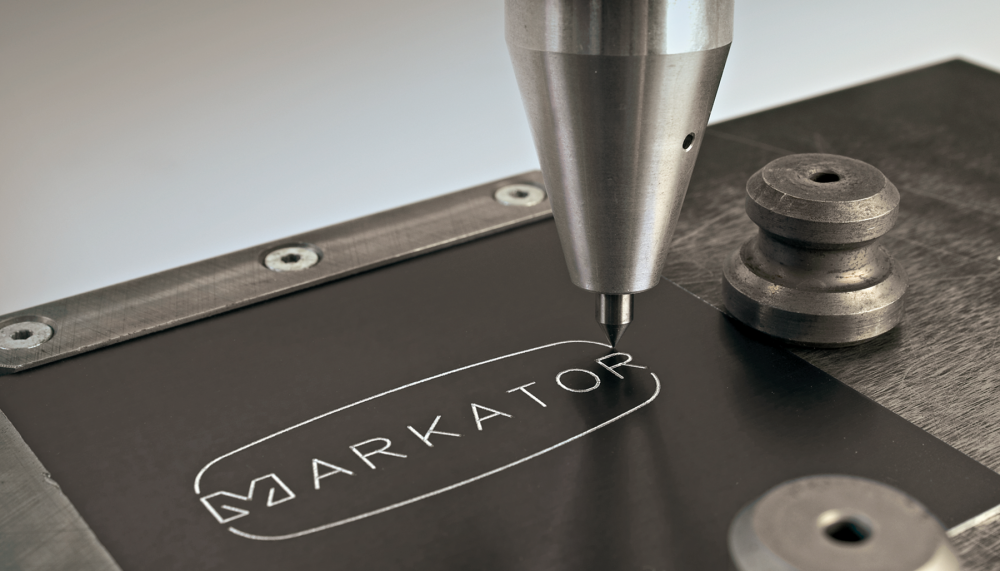

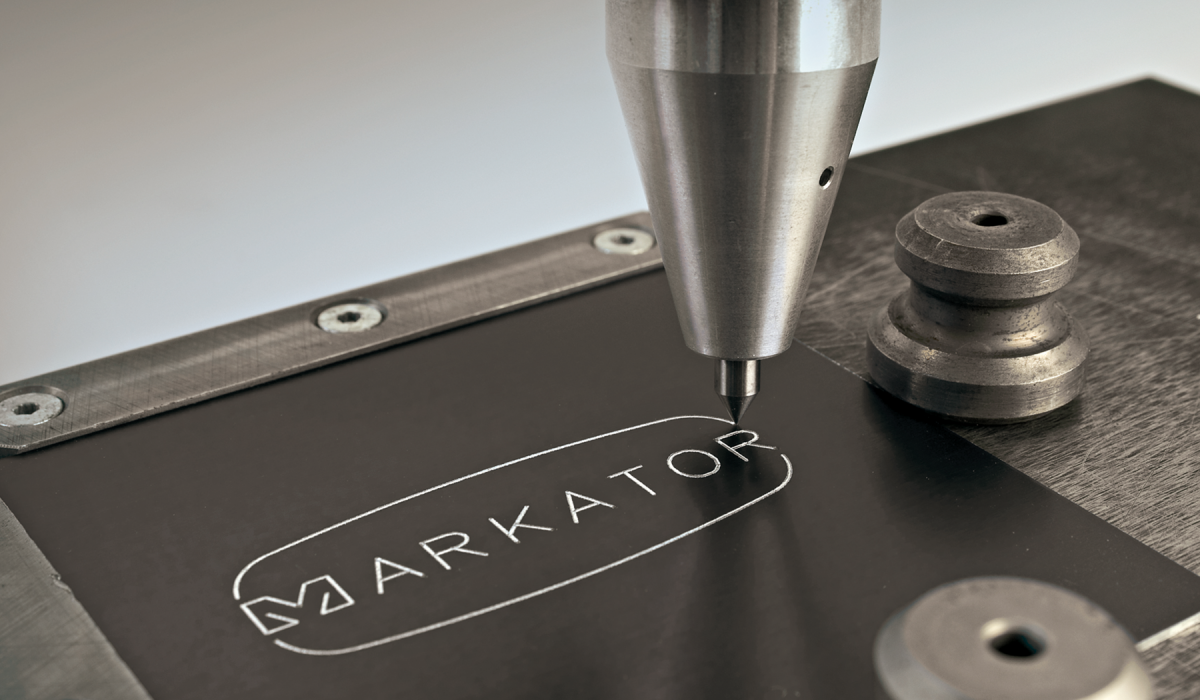

You can rely on the extremely robust MV5 VU2 scribe marking head in your daily work. The high-quality linear guides give the scribe marker high steadiness and rigidity and ensure a long durability. The technology is designed for high quantities and short cycle times in industrial 3-shift operation. For scribe marking, a pneumatically driven diamond marking pin is usually used. The marking head is maintenance-free and works independently of any position.

COMPACT

Extremely compact scribing marking head for space-saving installation in a production line
Mounting on an industrial robot possible
Weight-optimized construction
Deep and distortion-free marking

FUNCTIONAL

Low-noise marking through optimized scribe technology
High rigidity and long durability due to linear guides in double versions
High functionality through modular MARKATOR design system
Low air consumption

FAST

Precise and fast markings due to short valve activation times
Infinitely variable adjustment of the marking strengths of the scribe marking device via pressure regulator
With the SPRINT plus and SPRINT plus 2 options, higher marking speeds can be achieved for scribe marking

Marking areas (x/y): 80 x 50 mm / 80 x 100 mm / 160 x 50 mm / 160 x 100 mm / 200 x 175 mm

Weight: approx.. 6,7 kg

Available character heights: From 1,0 mm, continuously adjustable in 1/10-steps

Available characters: Capital and small letters A to Z, figures 0 to 9, various punctuation marks

Fonts: Standard, similar to DIN 1451 in a continous line or in single dot characters, size 5 x 7 and 9 x 13

Resolution of the stepping motors: 0,0125 mm for extrem high marking quality

Protective cover: available

Sensor: available

Mounting position: Any, from 0° to 360°

Central control units

Here you will find the suitable central control units for this marking head.

	MV5 ZE 101 XL	MV5 ZE 401 XL

19" version:	no	yes
Plug-in card slots:	2	4
Operation / Data input:	Touch screen	Clavier en feuille
Interfaces:	2x USB-A, 1x USB-B, RJ45	2x USB-A, 1x USB-B, RJ45
IP54:	yes	yes
Communication cards (optional):	PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)	PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)
Ethernet TCP/ IP (optional):	yes	yes
Preconfigured PLC function module, e.g. TIA (optional):	yes	yes
Safety relay module (optional):	yes	yes

MV5 ZE 101 XL

19" version:
nein

Plug-in card slots:
2

Operation / Data input:
Touch screen

Interfaces:
2x USB-A, 1x USB-B, RJ45

IP54:
ja

Communication cards (optional):
PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)

Ethernet TCP/ IP (optional):
ja

Preconfigured PLC function module, e.g. TIA (optional):
ja

Safety relay module (optional):
ja

MV5 ZE 401 XL

19" version:
ja

Plug-in card slots:
4
